3  Cross Validation

3.1 Data preparation

3.1.1 Internal validation cohort

Internal validation dataset was from the Validation dataset shown in Figure 6.1 C.

Now we set up the Salmon quant files of the validation (i.e. term) dataset. NB, dt.colllDataAll (shown from the code below) was set up from Listing 2.4.

Code to set the Salmon quant files of the term dataset (i.e. Validation dataset)
# remove these two samples as both of them flagged as "failed" by illumina (it is a 28wk control sample)
dt.colDataTerm<-dt.colDataAll[Type=="term" & !names %in% c("GS-B-374-UW","GS-B-374-UW-b")]
li.GA.term<-split(dt.colDataTerm, dt.colDataTerm$GA)

We are ready to read the Salmon quant files via tximeta R package. NB, the code below is equivalent to Listing 2.5 and Listing 2.6 from the discovery cohort (see Section 2.2.1).

Code to read the Salmon quant files of the term dataset and make dds object.
my.dds.RData<-paste0("RData/dds.term.",my.salmon.index,".RData")
if(file.exists(my.dds.RData)){
  load(my.dds.RData)
  message("loading dds...")
}else{
  gse.term<-tximeta::tximeta(dt.colDataTerm,skipMeta=T,tx2gene=dt.tx2gene[,.(transcript_id,gene_id)],txOut=F)
  # set up `dds` at gene-level
  my.design <- formula(~ Batch + GA + Sex + Condition)      # isa 'formula'
  dds.term <- DESeqDataSet(se=gse.term, design=my.design)

  dds.term$Group<-factor(paste0(dds.term$GA,dds.term$Condition)) # add 'Group'
  design(dds.term) <- formula(~ Batch + Sex + Group)        # isa 'formula'

  #
  dds.term<- DESeq(dds.term, parallel=TRUE) # isa 'DESeqDataSet'
  save(dds.term,file=my.dds.RData)
}

# use 15150 genes considered in this study
dds.f2.term<-DESeq(dds.term[rownames(dds.f2)], parallel=T)

my.dl.resLFC.RData<-paste0("RData/dl.resLFC.term.",my.salmon.index,".RData")
if(file.exists(my.dl.resLFC.RData)){
  load(my.dl.resLFC.RData)
}else{
  # apply shink
  li.resLFC.term<-lapply(names(li.GA.term),function(my.GA){
    my.res<-results(dds.f2.term,
            #alpha=.05, # by default independant filtering at FDR (alpha) 0.1 (10%)
            independentFiltering=FALSE,
            lfcThreshold=log2(minFC),
            contrast=c("Group",paste0(my.GA,c("Case","Control"))),
            parallel=TRUE)
    lfcShrink(dds.f2.term,
              #contrast=c("Group",paste0(my.GA,c("Case","Control"))), # not necessary for 'ashr'
              res=my.res, #li.res[[my.GA]],
              lfcThreshold=log2(minFC), # not applicable for 'asher'
              type="ashr",
              parallel=TRUE)
  })
  names(li.resLFC.term)<-names(li.GA.term)

  dl.resLFC.term<-lapply(li.resLFC.term, function(i)
    data.table(`gene_id`=rownames(i), as.data.frame(i))[order(pvalue)][,`:=`("BH"=p.adjust(pvalue,"BH"),"BY"=p.adjust(pvalue,"BY"),"bf"=p.adjust(pvalue,"bonferroni"))]
  )
  save(dl.resLFC.term, file=my.dl.resLFC.RData)
  #fwrite(dl.resLFC[["28wk"]], file=paste0("data/DEG.DSeq2.28wk.",my.type,".",my.salmon.index,".csv"))
}

Now we use edgeR. NB, this is equivalent to Listing 2.8 shown in Section 2.2.2.

Code to find DEGs by edgeR from the term dataset
gse2 <-gse.term[rownames(dds.f2.term),]
d2<-tximeta::makeDGEList(gse2)
d2$samples<-cbind(d2$samples,colData(gse2))
d2$samples$group<-factor(paste0(d2$samples$GA,d2$samples$Condition)) # add 'group'
d2$samples$GA<-droplevels(d2$samples$GA) # 36wk removed - really? 2023-03-21
d2$samples$Batch<-droplevels(d2$samples$Batch) # some batches removed

# TMM normalisation (default). It adds `norm.factors` d2$samples
# NB, we have `offsets`, which take precedence over lib.size and norm.factors
d2<-calcNormFactors(d2,method="TMM")

# design
# my.design <- model.matrix(~ Batch + Sex + group, data=d2$samples)         # isa 'matrix'
#my.design <- model.matrix(~ 0 + group,  data=d2$samples)       # isa 'matrix'
my.design <- model.matrix(~ 0 + group + Sex + Batch , data=d2$samples)      # isa 'matrix'
(my.contrasts <- makeContrasts(`12wk`=group12wkCase-group12wkControl,
                              `20wk`=group20wkCase-group20wkControl,
                              `28wk`=group28wkCase-group28wkControl,
                              levels=my.design)
)

# dispersion
#dp2 = estimateDisp(d2, design=my.design, verbose=T)
dp2 = estimateGLMCommonDisp(d2, design=my.design, verbose=T)
dp2 = estimateGLMTrendedDisp(dp2, design=my.design, verbose=T)
dp2 = estimateGLMTagwiseDisp(dp2, design=my.design)

#f = glmFit(dp2, design=my.design) #
f = glmQLFit(dp2, design=my.design) # QL(Quasi-like) pipeline
colnames(f)
f$coefficients %>% head

# get the edgeR results
li.res.edgeR.term<-lapply(names(li.GA.term), function(i){
  te <- glmTreat(f, contrast=my.contrasts[,i], lfc=log2(minFC))
  topTags(te, n=nrow(te))    # default sort by pvalue
})
names(li.res.edgeR.term) <-names(li.GA.term)

dl.res.edgeR.term<-lapply(li.res.edgeR.term, function(i)
  data.table(`gene_id`=rownames(i),i$table)[order(PValue)][,`:=`("BH"=p.adjust(PValue,"BH"),"BY"=p.adjust(PValue,"BY"),"bf"=p.adjust(PValue,"bonferroni"))]
)

my.dl.res.edgeR.RData<-paste0("RData/dl.res.edgeR.term.",my.salmon.index,".RData")
save(dl.res.edgeR.term, file=my.dl.res.edgeR.RData)
#fwrite(dl.res.edgeR[["28wk"]], file=paste0("data/DEG.edgeR.28wk.",my.type,".",my.salmon.index,".csv"))

The gene-level count matrix was converted as the unit of CPM (Count Per Million), in log2-scale, via the “cpm” function of edgeR and it was further transformed into a matrix of the z-score using the mean and standard deviation of logCPM from the control samples of each corresponding gestational age group. NB, this is equivalent to Listing 2.9 shown in Section 2.2.3.

Code to make the count matrix from the validation dataset
# based on genes from dds.f2.term
# CPM based on edgeR TMM  (NB, d isa "DGEList")
my.cnt.RData<-paste0("RData/dt.count2.term.",my.salmon.index,".RData")
if(file.exists(my.cnt.RData)){
  load(my.cnt.RData)
}else{
  dt.count<-merge(
    data.table(`geneName`=rownames(dds.f2.term),counts(dds.f2.term,normalized=T)) %>%
      melt.data.table(id.vars=c("geneName"),variable.name="SampleID",value.name="Count"),
    dt.samples[Type=="term",.(SampleID,GA,Condition,Group=paste(GA,Condition,sep="-"))]
  )

  # CPM based on DESeq2 `fpm`
  dt.cpm<-merge(
    data.table(`geneName`=rownames(dds.f2.term),fpm(dds.f2.term)) %>%
      melt.data.table(id.vars=c("geneName"),variable.name="SampleID",value.name="CPM"),
    dt.samples[Type=="term",.(SampleID,GA,Condition,Group=paste(GA,Condition,sep="-"))]
  )

  dt.tpm<-merge(
    data.table(`geneName`=rownames(dds.f2.term), assays(dds.f2.term)[["abundance"]]) %>%
      melt.data.table(id.vars=c("geneName"),variable.name="SampleID",value.name="TPM"),
    dt.samples[Type=="term",.(SampleID,GA,Condition,Group=paste(GA,Condition,sep="-"))]
  )

  # CPM based on edgeR TMM  (NB, d isa "DGEList")
  dt.cpm2<-merge(
    data.table(`geneName`=rownames(d2),cpm(d2)) %>%
      melt.data.table(id.vars=c("geneName"),variable.name="SampleID",value.name="CPM"),
    dt.samples[Type=="term",.(SampleID,GA,Condition,Group=paste(GA,Condition,sep="-"))]
    )

  dt.logcpm2<-merge(
    data.table(`geneName`=rownames(d2),cpm(d2,log=T)) %>%
      melt.data.table(id.vars=c("geneName"),variable.name="SampleID",value.name="logCPM"),
    dt.samples[Type=="term",.(SampleID,GA,Condition,Group=paste(GA,Condition,sep="-"))]
    )

  save(dt.count, dt.cpm, dt.tpm, dt.cpm2, dt.logcpm2, file=my.cnt.RData)
}
Code to make the z-score matrix from the validation dataset
my.cpmZ.RData<-paste0("RData/dt.cpmZ.term.",my.salmon.index,".RData")
if(file.exists(my.cpmZ.RData)){
  load(my.cpmZ.RData)
}else{
  dt.cpmZ.term=merge(dt.logcpm2,
                dt.logcpm2[Condition=="Control",.(Mean=mean(logCPM),SD=sd(logCPM)),.(GA,geneName)]
        ,by=c("GA","geneName")
        )[,.(Group,GA,Condition,SampleID,geneName,logCPM,logCPMZ=(logCPM-Mean)/SD)]
  save(dt.cpmZ.term,file=my.cpmZ.RData)
}

3.1.2 External validation dataset

For an external validation, we downloaded the raw sequencing counts file (Data File S2: Raw whole-transcriptome sequencing counts for iPEC cohort; n=113) from Munchel et al.. The Data File (in the excel file format) was read and parsed by using readxl (v1.3.1) and data.table (v1.13.6) R packages, respectively.

For downstream processing, we only considered those genes in the final set of 15,150 genes that were used in the differentially expressed gene analysis of the discovery and the validation cohort (see Section 2.2.1).

Code to import Munchel dataset and make dds object by DESeq2
my.dds.RData<-paste0("RData/dds.munchel.RData")
if(file.exists(my.dds.RData)){
  load(my.dds.RData)
  message("loading dds...")
}else{
  # import
  dt.foo<-readxl::read_excel("~/data/Munchel/SciTrMed.2020/aaz0131_data_file_s2.xlsx",skip=3) %>% as.data.table
  dt.foo[,-c("Chr","Start","End","Strand")][1:5,1:5]

  # sample info with GA of sample collection
  dt.munchel.meta<-data.table(
                            names=dt.foo[is.na(Geneid),-c("Geneid","Chr","Start","End","Strand","Length")] %>%
                              colnames %>%
                              stringr::str_replace("\\.\\.\\.",""),
                            GA=dt.foo[is.na(Geneid),-c("Geneid","Chr","Start","End","Strand","Length")] %>% unlist
                            )
  dt.munchel.meta[,Condition:=ifelse(grepl("PE",names),"Case","Control")]
  dt.munchel.meta$GA %>% summary
  dt.munchel.meta[,.N,Condition]
  dt.munchel.meta[Condition=="Control"]$GA %>% summary
  dt.munchel.meta[Condition=="Case"]$GA %>% summary
  df.munchel.meta<-data.frame(dt.munchel.meta, row.names=dt.munchel.meta$names)

  # cnt
  dt.munchel.cnt<-dt.foo[!is.na(Geneid),-c("Chr","Start","End","Strand","Length")]
  dt.munchel.cnt %>% dim # 26708 genes x 114 samples
  dt.munchel.cnt[1:5,1:5]
  colnames(dt.munchel.cnt)<-c("gene_name",dt.munchel.meta$names) # update the sample names
  dt.munchel.cnt[1:5,1:5]
  dt.munchel.cnt[,.N,gene_name][N>1][order(-N)] # 0 duplicated gene names

  dt.munchel.cnt[grepl("_dup",gene_name)][,.N,gene_name] # 1355 such gene names
  dt.munchel.cnt[grepl("_dup",gene_name)][1:5,1:5]

  dt.munchel.cnt[,gene_name:=tstrsplit(gene_name,"_dup",fixed=T,keep=1L)]
  dt.munchel.cnt[grepl("_dup",gene_name)]
  dt.munchel.cnt[,.N,gene_name][N>1][order(-N)] # 491 duplicated gene names
  dt.munchel.cnt[gene_name=="REXO1L2P",1:5]
  dt.munchel.cnt[,.N,gene_name %in% rownames(dds.f2)] # genes only in the dds.f2 (15150 genes)
                                                      # TRUE 13555; FALSE 13153
  rownames(dds.f2) %in% dt.munchel.cnt$gene_name %>% table # from 15150 genesin dds.f2, 13469 genes in Munchel; 1681 genes not in Munchel
  dds.f2[!rownames(dds.f2) %in% dt.munchel.cnt$gene_name] %>% names

  dt.munchel.cnt2<- (dt.munchel.cnt[gene_name %in% rownames(dds.f2)] %>%
                     melt.data.table(id.vars=c("gene_name"), variable.name="SampleID",value.name="Cnt"))[,.(Cnt=sum(Cnt)),.(SampleID,gene_name)] %>%
                      dcast.data.table(gene_name ~ SampleID, value.var="Cnt")
  dim(dt.munchel.cnt2) # 13469 genes x 114 samples
  dt.munchel.cnt2[,.N,gene_name][N>1][order(-N)] # no duplicated genes
  all.equal(colnames(dt.munchel.cnt),colnames(dt.munchel.cnt2))

  mat.munchel.cnt2<-dt.munchel.cnt2 %>% as.matrix(rownames="gene_name")
  dim(mat.munchel.cnt2) # 13469 x 113
  mat.munchel.cnt2[1:5,1:5]

  all.equal(colnames(mat.munchel.cnt2), rownames(df.munchel.meta))

  dds.munchel<-DESeqDataSetFromMatrix(mat.munchel.cnt2, df.munchel.meta, design=formula(~Condition) )

  dds.munchel<- DESeq(dds.munchel, parallel=TRUE) # isa 'DESeqDataSet'
  save(dt.munchel.meta,dds.munchel,file=my.dds.RData)
}

Using the filtered gene-level raw count matrix, we ran edgeR and constructed a matrix of CPM, in log2-scale, via the “cpm” function of edgeR. The matrix was further transformed into a matrix of the z-score using the mean and standard deviation of logCPM from the 73 control samples.

Code to make the z-score matrix from the Munchel dataset
my.cpmZ.RData<-paste0("RData/dt.cpmZ.munchel.RData")
if(file.exists(my.cpmZ.RData)){
  load(my.cpmZ.RData)
}else{
  load("RData/dds.munchel.RData")
  dds.munchel # samples from Discovery & Validation1

  d.munchel = DEFormats::as.DGEList(dds.munchel)
  d.munchel<-calcNormFactors(d.munchel,method="TMM")

  dt.logcpm2<-merge(
      data.table(`geneName`=rownames(d.munchel),cpm(d.munchel,log=T)) %>%
        melt.data.table(id.vars=c("geneName"),variable.name="SampleID",value.name="logCPM"),
      df.munchel.meta,by.x="SampleID",by.y="names"
      )

  dt.cpmZ.munchel=merge(dt.logcpm2,
                dt.logcpm2[Condition=="Control",.(Mean=mean(logCPM),SD=sd(logCPM)),.(geneName)]
        ,by=c("geneName")
        )[,.(Condition,SampleID,geneName,logCPM,logCPMZ=(logCPM-Mean)/SD)]
  save(dt.cpmZ.munchel,file=my.cpmZ.RData)
}

3.2 Data split for 5-fold CV

We randomly split the samples into 5 strata by distributing the number of case and control outcomes as even as possible across the 5 folds. This stratified 5-fold splitting was repeated 5 times by changing a seed number in each repetition, and the 11 ML models (see below #sec-cv-11ML) were trained to choose a desired number of predictors from 2 to 6.

Code to split 5-fold with 5 repetitions
load("RData/dt.cpmZ.preterm.POPS-2022.GRCh38.88.RData") # dt.cpmZ (preterm)
load("RData/dt.cpmZ.term.POPS-2022.GRCh38.88.RData") # dt.cpmZ.term (term)
load("RData/dt.cpmZ.munchel.RData") # dt.cpmZ.munchel (Munchel)

li.mat<-list()
# set the train dataset, i.e. preterm-28wk
li.mat[["train"]]<-lapply(list(`12wk`="12wk",`20wk`="20wk",`28wk`="28wk"), function(my.GA) {
  dt.cpmZ[GA==my.GA & geneName %in% core17,.(SampleID,geneName,logCPMZ,y=ifelse(Condition=="Case",1,0))] %>% dcast.data.table(SampleID+y~geneName,value.var="logCPMZ") %>% as.matrix(rownames="SampleID") # isa 'list'
  })

# set the test dataset, i.e. term
li.mat[["test"]]<-lapply(list(`12wk`="12wk",`20wk`="20wk",`28wk`="28wk",`36wk`="36wk"), function(my.GA) {
    dt.cpmZ.term[GA==my.GA & geneName %in% core17,.(SampleID,geneName,logCPMZ,y=ifelse(Condition=="Case",1,0))] %>% dcast.data.table(SampleID+y~geneName,value.var="logCPMZ") %>% as.matrix(rownames="SampleID") # isa 'list'
  })

li.mat[["munchel"]]<-dt.cpmZ.munchel[geneName %in% core17,.(SampleID,geneName,logCPMZ,y=ifelse(Condition=="Case",1,0))] %>% dcast.data.table(SampleID+y~geneName,value.var="logCPMZ") %>% as.matrix(rownames="SampleID") # isa 'matrix'

##############################################
# Set the 5-fold with 5 rep for 28wk preterm #
##############################################
# set stratified folds
# such that the numbers of cases and controls in each fold are the same for each fold (or, at least, as close to this as possible)
nFold<-5; nRep<-5; li.fold<-list() # index of training in
for(iRep in 1:nRep){
  caseInds <- which(li.mat[["train"]][["28wk"]][,"y"]==1)
  ctrlInds <- which(li.mat[["train"]][["28wk"]][,"y"]==0)

  #Randomise for good measure:
  set.seed(123+iRep)
  caseInds <- caseInds[sample(1:length(caseInds))]
  ctrlInds <- ctrlInds[sample(1:length(ctrlInds))]

  approximatelyEqualParts_Cases <- ggplot2::cut_interval(1:length(caseInds), nFold)
  approximatelyEqualParts_Ctrls <- ggplot2::cut_interval(1:length(ctrlInds), nFold)

  quintiles_Cases <- vector(mode = "integer", length = length(caseInds))
  quintiles_Ctrls <- vector(mode = "integer", length = length(ctrlInds))
  for(i in 1:length(levels(approximatelyEqualParts_Cases))){
    currentLevel <- levels(approximatelyEqualParts_Cases)[i]
    quintiles_Cases[approximatelyEqualParts_Cases == currentLevel] <- i
  }

  for(i in 1:length(levels(approximatelyEqualParts_Ctrls))){
    currentLevel <- levels(approximatelyEqualParts_Ctrls)[i]
    quintiles_Ctrls[approximatelyEqualParts_Ctrls == currentLevel] <- i
  }

  quintiles <- vector(mode = "integer", length = nrow(li.mat[["train"]][["28wk"]]))
  for(i in 1:nFold){
    quintiles[c(caseInds[quintiles_Cases == i], ctrlInds[quintiles_Ctrls == i])] <- i
  }

    # Split the data into training and testing sets for this fold
  for(iFold in 1:nFold){
    li.fold[[paste0("Fold",iFold,".Rep",iRep)]]<-which(quintiles != iFold)
  }
} # end of iRep

########################################
# Set the final 5-fold to use all_28wk #
########################################
nFold<-5; nRep<-1; li.fold.final<-list() # index of training in
for(iRep in 1:nRep){
  caseInds <- which(li.mat[["train"]][["28wk"]][,"y"]==1)
  ctrlInds <- which(li.mat[["train"]][["28wk"]][,"y"]==0)

  #Randomise for good measure:
  set.seed(333)
  caseInds <- caseInds[sample(1:length(caseInds))]
  ctrlInds <- ctrlInds[sample(1:length(ctrlInds))]

  approximatelyEqualParts_Cases <- ggplot2::cut_interval(1:length(caseInds), nFold)
  approximatelyEqualParts_Ctrls <- ggplot2::cut_interval(1:length(ctrlInds), nFold)

  quintiles_Cases <- vector(mode = "integer", length = length(caseInds))
  quintiles_Ctrls <- vector(mode = "integer", length = length(ctrlInds))
  for(i in 1:length(levels(approximatelyEqualParts_Cases))){
    currentLevel <- levels(approximatelyEqualParts_Cases)[i]
    quintiles_Cases[approximatelyEqualParts_Cases == currentLevel] <- i
  }

  for(i in 1:length(levels(approximatelyEqualParts_Ctrls))){
    currentLevel <- levels(approximatelyEqualParts_Ctrls)[i]
    quintiles_Ctrls[approximatelyEqualParts_Ctrls == currentLevel] <- i
  }

  quintiles <- vector(mode = "integer", length = nrow(li.mat[["train"]][["28wk"]]))
  for(i in 1:nFold){
    quintiles[c(caseInds[quintiles_Cases == i], ctrlInds[quintiles_Ctrls == i])] <- i
  }

    # Split the data into training and testing sets for this fold
  for(iFold in 1:nFold){
    li.fold.final[[paste0("Fold",iFold,".Rep",iRep)]]<-which(quintiles != iFold)
  }
} # end of iRep

3.3 11 machine learning methods

We considered a total of 11 ML methods to select the best performing method based on the 5-fold cross-validation (CV) with 5 repetitions.

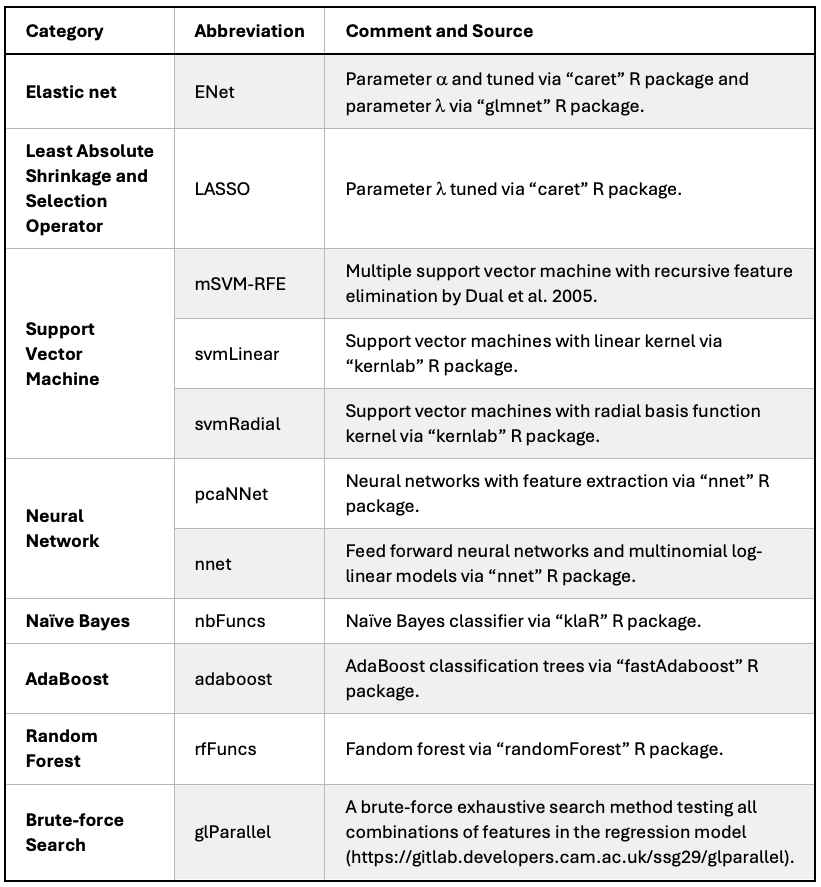

Figure 3.1: 11 machine-learning methods considered in this study

For the three penalised regression methods (ENet1, ENet2 and LASSO), they were firstly fitted by using the train function for the two Elastic net methods (ENet1 and ENet2) and the cv.glmnet function for LASSO, from the caret (v6.0.94) and the glmnet (v.4.1.2) R package, respectively. For ENet1, both the parameter \(\alpha\) and \(\lambda\) were tuned by the caret::train, whereas the parameter \(\lambda\) was further tuned by the glmnet::cv.glmnet for ENet2.

Next, based on the best fitted penalised regression models, a matrix of the \(\beta\) coefficient was examined to find the first set of predictors with non-zero \(\beta\) coefficients that satisfied a desired number of predictors. If the number of predictors with non-zero coefficients exceeded the desired number, the absolute values of coefficients were sorted in their decreasing order and only the desired number of predictors were selected with their highest absolute scores.

For the remaining methods, except mSVM-RFE (see also Section 3.3.2) which embedded a Recursive Feature Elimination (RFE) algorithm internally, we used the caret::rfe function by controlling the “sizes” parameter to have the corresponding models with the desired number of predictors.

3.3.1 glParallel

In glParallel, a brute-force exhaustive search method, for a given number of predictors, it searched all possible combinations of predictors in multivariate regression models and picked the best model based on the highest predictive performance.

For example, glParallel trained a total of 2,380 models, which is the possible number of combinations having 4 predictors out of 17, and chose the best model based on the highest Leave Pair Out Cross Validated (LPOCV) Area Under the ROC Curve (AUC), a version of optimism-corrected AUC.

Install glParallel

You need to download and install glParallel locally via the following git command:

Listing 3.1: Code to download glParallel
git clone https://gitlab.developers.cam.ac.uk/ssg29/glparallel.git static/R/glParallel

Then, prepare dataset to run glParallel.

Code to prepare dataset for glParallel
#####################################################
# make training dataset files for the CV glParallel #
#####################################################
lapply(names(li.fold), function(i){
  message("fold=",i)
  # training set
  my.index=li.fold[[i]]
  my.file.name=file.path("glParallel/data",paste("core17",i,"csv",sep="."))
  fwrite(li.mat[["train"]][["28wk"]][my.index,], file=my.file.name)
})
# then run glParallel (see glParallel/RUN)

####################################################
# make training dataset files for final glParallel #
####################################################
fwrite(li.mat[["train"]][["28wk"]], file="glParallel/data/core17.final.csv")
LPOCV-AUC

In LPOCV-AUC, a model was fitted based on a given set of training samples except one pair of case-and-control, then the model was used to predict the outcome of the remaining pair. The LPOCV-AUC was calculated as the proportion of all pairwise combinations in which the predicted probability was greater for the case than for the control. There is a helper function to calculate the LPOCV-AUC in glParallel

3.3.2 mSVM-RFE

This method is from the (multiple) Support Vector Machine Recursive Feature Elimination (mSVM-RFE).

Install SVM-RFE

You need to download nad install SVM-RFE locally via the following git command:

Listing 3.2: Code to download SVM-RFE
git clone https://github.com/johncolby/SVM-RFE.git static/R/SVM-RFE

3.4 5-Fold cross validation

We defined a series of helper functions to facilitate the whole process of CV more efficient.

R function get_lasso_coef

This helper function runs LASSO and ranks features by their importance.

Code to run Lasso and get non-zero coefficient
# returns: data.table(`method`,`fold`,`feature`,`score`,`rank`)
get_lasso_coef<-function(x,my.fold,my.num=4){
  #x isa `matrix` and should contain 'y' column
  all.features<-colnames(x)[colnames(x)!="y"]

  #############
  # run Lasso #
  #############
  set.seed(333) # set a random seed for a reproducibility
  system.time(
      cv.fit<-cv.glmnet(
                  x= x[,all.features],
                  y= x[,'y'],
                  family="binomial",
                  alpha=1, # default (i.e. lasso)
                  keep=T, # FALSE by default
                  type.measure = "auc" #type.measure="class" # default for 'binomial'
      )
  )

  ############################################
  # 1. select by lambda.min  & 2. lambda.1se #
  ############################################
  dt.foo<-lapply(c("lambda.min","lambda.1se"), function(my.lambda){
    coeff1<-coef(cv.fit, s = my.lambda) %>% as.matrix #Extract coefficients from this glmnet object
    nZero1<-coeff1[coeff1[,"s1"]!=0,,drop=F][-1,,drop=F] %>% nrow # the number of non-zero coeff
    if(nZero1==0){
      dt.foo<-data.table(
                        method=my.lambda,
                        fold=my.fold,
                        `feature`=NA,
                        score=NA)
    }else{
      coeff1[coeff1[,"s1"]!=0,,drop=F][-1,,drop=F]
      coeff1[coeff1[,"s1"]!=0,,drop=F][-1,,drop=F] %>% as.data.table(keep.rownames=T) # return DT(rn,s1)
      dt.foo<-data.table(
                        method=my.lambda,
                        fold=my.fold,
                        coeff1[coeff1[,"s1"]!=0,,drop=F][-1,,drop=F] %>% as.data.table(keep.rownames=T))
    }
    setnames(dt.foo,c("method","fold","feature","score"))
    dt.foo
  }) %>% rbindlist

  ####################
  # 3. Lasso-pathway #
  ####################
  mat.beta <- cv.fit$glmnet.fit$beta %>% as.matrix
  apply(mat.beta, 2, function(i){table(i!=0)["TRUE"]})
  my.lambdas<-apply(mat.beta, 2, function(i){table(i!=0)["TRUE"]})>=my.num
  this.index<-my.lambdas[my.lambdas & !is.na(my.lambdas)][1] %>% names # the first index >=my.num
  if(is.na(this.index)){
    NULL
  }else{
    this.index.num <- (strsplit(this.index,"s")[[1]][2] %>% as.integer) +1
    nZero<-sum(mat.beta[,this.index]!=0, na.rm=T) # number of non-zero coefficient
    #mat.beta[mat.beta[,this.index]!=0,this.index,drop=F]
    dt.bar<-data.table(
                      method="LASSO",
                      fold=my.fold,
                      mat.beta[mat.beta[,this.index.num]!=0,this.index.num,drop=F] %>% as.data.table(keep.rownames=T)
    ) # save as the above
    setnames(dt.bar,c("method","fold","feature","score"))

    if(nrow(dt.bar)>my.num){
      dt.bar<-dt.bar[order(method,fold,-abs(score))][1:my.num]
    }

    dt.baz<-rbind(dt.foo, dt.bar)
    dt.baz<-dt.baz[order(method,fold,-abs(score))][,rank:=1:.N,.(method,fold)]
    return(dt.baz)
  }
} # end of get_lasso_coef
R function get_enet_coef

This helper function runs Elastic net and rank features by their importance.

Code to run ENet1 and ENet2 and get non-zero coefficients
# returns: data.table(`method`,`fold`,`feature`,`score`,`rank`)
get_enet_coef<-function(x,my.fold,my.num=4){
  #x isa `matrix` and should contain 'y' column
  all.features<-colnames(x)[colnames(x)!="y"]

  cv.fit<-list()
  ##########
  # E: EN1 #
  ##########
  cl <- makePSOCKcluster(8) # No. of cores to use
  registerDoParallel(cl)
  set.seed(333) # set a random seed for a reproducibility
  system.time(
      cv.fit[["E"]]<-caret::train(
                              x= x[,all.features],
                              y=factor(ifelse(x[,"y"]==1,'case','non_case'),levels=c("non_case","case")),
                              method="glmnet",
                              family="binomial",
                              trControl = trainControl(method = "cv",
                                                        summaryFunction = twoClassSummary,
                                                        classProbs = TRUE,
                                                        savePredictions = T,
                                                        verboseIter = T,
                                                        ),  # number =10 by default for "cv"
                              tuneLength=10, # grid size: 10(alpha) * 10(lambda)
      )
  )
  stopCluster(cl)

  if(F){
  varImp(cv.fit[["E"]], useModel=T)
  varImp(cv.fit[["E"]], useModel=F, nonpara=F, scale=T)
  predictors(cv.fit$E) # features used in the model
  }

  mat.beta<- cv.fit$E$finalModel$beta %>% as.matrix
  my.lambdas<-apply(mat.beta, 2, function(i){table(i!=0)["TRUE"]})>=my.num
  this.index<-my.lambdas[my.lambdas & !is.na(my.lambdas)][1] %>% names
  if(is.na(this.index)){
    dt.foo<-NULL
  }else{
    this.index.num <- (strsplit(this.index,"s")[[1]][2] %>% as.integer) +1
    #mat.beta[mat.beta[,this.index.num]!=0,this.index.num,drop=F] %>% as.data.table(keep.rownames=T)
    dt.foo<-data.table(method="ENet1",
                      fold=my.fold,
                      mat.beta[mat.beta[,this.index.num]!=0,this.index.num,drop=F] %>% as.data.table(keep.rownames=T)) # save as the above
    setnames(dt.foo,c("method","fold","feature","score"))
    if(nrow(dt.foo)>my.num){
      dt.foo<-dt.foo[order(method,fold,-abs(score))][1:my.num]
    }
  }

  ##########
  # F: EN2 #
  ##########
  set.seed(333)
  system.time(
      cv.fit[["F"]]<-cv.glmnet(
                  x= x[,all.features],
                  y= x[,"y"], # will be coerced to a factor if not (for binomial)
                  family="binomial",
                  alpha=cv.fit$E$bestTune$alpha,
                  keep=T, # FALSE by default
                  type.measure = "auc" #type.measure="class" # default for 'binomial'
      )
  )
  #cv.fit$F$nzero
  mat.beta2 <- cv.fit$F$glmnet.fit$beta %>% as.matrix
  my.lambdas<-apply(mat.beta2, 2, function(i){table(i!=0)["TRUE"]})>=my.num
  this.index<-my.lambdas[my.lambdas & !is.na(my.lambdas)][1] %>% names
  if(is.na(this.index)){
    dt.bar<-NULL
  }else{
    this.index.num <- (strsplit(this.index,"s")[[1]][2] %>% as.integer) +1
    dt.bar<-data.table(
                        method="ENet2",
                        fold=my.fold,
                        mat.beta2[mat.beta2[,this.index.num]!=0,this.index.num,drop=F] %>% as.data.table(keep.rownames=T)) # save as the above
    setnames(dt.bar,c("method","fold","feature","score"))
    if(nrow(dt.bar)>my.num){
      dt.bar<-dt.bar[order(method,fold,-abs(score))][1:my.num]
    }
  }

  dt.baz<-rbind(dt.foo,dt.bar)
  if(!is.null(dt.baz)){
    dt.baz<-dt.baz[order(method,fold,-abs(score))][,rank:=1:.N,.(method,fold)]
  }
  return(dt.baz)
} # end of get_enet_coef
R function runRFE2

This helper function select desired number of features by using recursive feature elimination method via caret::rfe()

Code to run recursive feature elimination
# x: data matrix
# my.method:
# my.num: number of desired features
# my.index: a list with elements for each external resampling iteration.
# is.final: the final selected features if set true; oterwise at each fold level
# returns: data.table(`method`,`fold`,`feature`,`score`,`rank`)
runRFE2 <-function(x, my.method="svmRadial", my.num=4, my.index, is.final=F){
  #x isa `matrix` and should contain 'y' column
  all.features<-colnames(x)[colnames(x)!="y"]

  li.methods<-list(
    `svmLinear`="svmLinear",
    `svmRadial`="svmRadial",
    `nnet`="nnet",
    `pcaNNet`="pcaNNet",
    `rfFuncs`=rfFuncs,
    `nbFuncs`=nbFuncs,
    )

  my.fun<-li.methods[[my.method]]
  if(is.list(my.fun)){
    myFuncs<-my.fun
  }else{
    myFuncs<-caretFuncs
  }
  myFuncs$summary <- twoClassSummary

  rfe.ctrl <- rfeControl(functions=myFuncs,
                         method = "cv",
                         #repeats =1, number = 10, # NB, index below
                         #returnResamp="all", # "final" by default
                         saveDetails=T,
                         verbose = TRUE,
                         index = my.index #a list with elements for each external resampling iteration.
                                          #Each list element is the sample rows used for training at
                                          #that iteration.
  )

  tr.ctrl <- trainControl(method = "cv",
                          #repeats =1, number = 10, # NB, index below
                          summaryFunction = twoClassSummary,
                          classProbs = TRUE,
                          savePredictions = T,
                          verboseIter = T,
                          index = my.index #a list with elements for each external resampling iteration.
                                            #Each list element is the sample rows used for training at
                                            #that iteration.
  )

  # run REF via caret::ref #
  cl <- makePSOCKcluster(8) # No. of cores to use
  registerDoParallel(cl)
  set.seed(333) # set a random seed for a reproducibility
  cv.rfe<-caret::rfe(
                     x=as.data.frame(x[,all.features]),
                     y=factor(ifelse(x[,"y"]==1,'case','non_case'),levels=c("non_case","case")),
                     sizes = my.num, #2^(2:4), # default
                     metric="ROC",
                     rfeControl=rfe.ctrl,
                     method=my.method, # feed it to 'train'
                     tuneLength = 5, #ifelse(trControl$method == "none", 1, 3)
                     trControl=tr.ctrl # feed it to 'train'
  )
  stopCluster(cl)

  dt.foo<-data.table(`method`=my.method,cv.rfe$variables)
  if(is.final){
    dt.bar<-data.table(`method`=my.method,
                       `fold`="final",
                       `feature`=cv.rfe$optVariables[1:my.num],
                       `score`=NA,
                       `rank`=1:my.num)
  }else{
    dt.bar<-dt.foo[Variables==cv.rfe$optsize][order(Resample,-Overall)][,.SD[1:my.num],.(method,Resample)][,rank:=1:.N,.(method,Resample)][,.(method,fold=Resample,feature=var,score=Overall,rank)]
  }

  return(dt.bar)
}
R function get_cv_glm

This helper function extracts the predictive performance of the training model from a given fold tested using held-out samples during kCV.

Code to extract the stat of the training model given the fold ID from the 5-fold CV with 5 repetitions
# x: matrix dataset (train/test at the same time, separated by my.index which is the training)
# my.fold: fold ID
# my.index: the training index of `x` to subset where the model should be built
# my.feature: features of interests
get_cv_glm<-function(x=li.mat[["train"]][["28wk"]],my.fold,my.index,my.feature){
  mat.tr<-x[my.index,] # index of the training
  df.mat.tr<-mat.tr[,c(my.feature,'y')] %>% as.data.frame  # training set

  ############################################
  # fit the model using the training dataset #
  ############################################
  my.model<-glm(y~. , data = df.mat.tr, family = "binomial")

  # ROC from the training fold
  my.roc <-pROC::roc(response=df.mat.tr$y, predictor=fitted(my.model),quite=T,ci=T)

  # LPOCV from the training fold
  LPOCV.boot<-boot::boot(data=df.mat.tr, statistic=get_LPOCV_boot,R=100,parallel="multicore",ncpus=10)
  LPOCV.ci<-boot::boot.ci(LPOCV.boot,type="perc")

  # the whole dataset were training set, i.e. no test
  if(length(my.index)==nrow(x)){
    cbind(
      data.table(
                `fold`=my.fold,
                `predictor`=paste(my.feature,collapse=",")
                ),
      data.table(
                `AIC`=my.model$aic,
                `BIC`=BIC(my.model),
                `AUC`=my.roc$ci[2]*100,
                `AUC_lo`=my.roc$ci[1]*100,
                `AUC_hi`=my.roc$ci[3]*100,
                `LPOCV`=LPOCV.boot$t0,
                `LPOCV_lo`=LPOCV.ci$percent[4],
                `LPOCV_hi`=LPOCV.ci$percent[5]
                )
    )
  }else{
    #################################################
    # now, predict the outcome of the held-out data #
    # using the model from the training dataset     #
    #################################################
    mat.test<-x[-my.index,]
    df.mat.test<-mat.test[,c(my.feature,'y')] %>% as.data.frame # held-out

    my.prob<-predict.glm(my.model, newdata=df.mat.test, type="response")
    my.roc.test <- pROC::roc(response=df.mat.test$y, predictor=my.prob,quiet=T,ci=T)
    LPOCV.boot.test<-boot::boot(data=df.mat.test, statistic=get_LPOCV_boot,R=100,parallel="multicore",ncpus=20)
    # deal with failed boot result
    if(is.numeric(LPOCV.boot.test$t)){
      LPOCV.ci.test<-boot::boot.ci(LPOCV.boot.test,type="perc")
      LPOCV_test_lo=LPOCV.ci.test$percent[4]
      LPOCV_test_hi=LPOCV.ci.test$percent[5]
    }else{
      LPOCV_test_lo=NA
      LPOCV_test_hi=NA
    }
    # return the following table
    cbind(
      data.table(
                `fold`=my.fold,
                `predictor`=paste(my.feature,collapse=",")
                ),
      data.table(
                `AIC`=my.model$aic,
                `BIC`=BIC(my.model),
                `AUC`=my.roc$ci[2]*100,
                `AUC_lo`=my.roc$ci[1]*100,
                `AUC_hi`=my.roc$ci[3]*100,
                `LPOCV`=LPOCV.boot$t0,
                `LPOCV_lo`=LPOCV.ci$percent[4],
                `LPOCV_hi`=LPOCV.ci$percent[5],
                `AUC_test`=my.roc.test$ci[2]*100,
                `AUC_test_lo`=my.roc.test$ci[1]*100,
                `AUC_test_hi`=my.roc.test$ci[3]*100,
                `LPOCV_test`=LPOCV.boot.test$t0,
                `LPOCV_test_lo`=LPOCV_test_lo,
                `LPOCV_test_hi`=LPOCV_test_hi
                )
    )
  }
}
R function get_cv_glm2

This helper function extracts the basic statistic (e.g. AIC, BIC, and AUC etc) of the training model for a given fold during kCV.

Code to extract the predictive performance of the training model given the fold ID from the 5-fold CV with 5 repetitions
# x: the dataset where the model should be tested on (i.e. the test set)
# my.model: the model from the training
# my.feature: features of interests
get_cv_glm2<-function(x=li.mat[["test"]][["28wk"]],my.fold, my.model,my.feature){
    df.mat.test<-x[,c(my.feature,'y')] %>% as.data.frame # test (validation) dataset

    #my.prob<-predict.glm(my.model, newdata=df.mat.test, type="response")
    my.prob<-predict(my.model, newdata=df.mat.test, type="response")
    my.roc.test <- pROC::roc(response=df.mat.test$y, predictor=my.prob,quiet=T,ci=T)
    LPOCV.boot.test<-boot::boot(data=df.mat.test, statistic=get_LPOCV_boot,R=100,parallel="multicore",ncpus=20)
    # deal with failed boot result
    if(is.numeric(LPOCV.boot.test$t)){
      LPOCV.ci.test<-boot::boot.ci(LPOCV.boot.test,type="perc")
      LPOCV_test_lo=LPOCV.ci.test$percent[4]
      LPOCV_test_hi=LPOCV.ci.test$percent[5]
    }else{
      LPOCV_test_lo=NA
      LPOCV_test_hi=NA
    }

    # return the following table
    cbind(
      data.table(
                `fold`=my.fold,
                `predictor`=paste(my.feature,collapse=",")
                ),
      data.table(
                `AUC_test`=my.roc.test$ci[2]*100,
                `AUC_test_lo`=my.roc.test$ci[1]*100,
                `AUC_test_hi`=my.roc.test$ci[3]*100,
                `LPOCV_test`=LPOCV.boot.test$t0,
                `LPOCV_test_lo`=LPOCV_test_lo,
                `LPOCV_test_hi`=LPOCV_test_hi,
                 `AIC`=my.model$aic,
                 `BIC`=BIC(my.model)
                )
    )
}

Having defined those helper functions, we are now ready to proceed 5-fold CV with 5 repetitions.

Code to run 11 ML methods in 5-fold CV with 5-repetitions
##
## Training on based on 5-fold CV
##
my.RData<-file.path("RData/dl.kcv.core17.RData")
if(file.exists(my.RData)){
  load(my.RData)
}else{
  library(e1071)
  source('SVM-RFE/msvmRFE.R')

  li.methods<-list(
    `svmLinear`="svmLinear",
    `svmRadial`="svmRadial",
    `nnet`="nnet",
    `pcaNNet`="pcaNNet",
    `rfFuncs`=rfFuncs,
    `nbFuncs`=nbFuncs
    )

  #|Num: 6 Method: LASSO
  # Fold5.Rep5
  #Error in mat.beta[, this.index] : subscript out of bounds
  li.num<-list(`F2`=2,`F3`=3,`F4`=4,`F5`=5,`F6`=6)
  dl.kcv<-lapply(li.num, function(my.num){
    # 1. glParallel
    message(paste("Num:",my.num,"Method: glParallel"))
    my.pattern=paste0("^core17\\.Fold[[:alnum:]]\\.Rep[[:alnum:]]\\.best",my.num)
    dt.input<-data.table(
                    foo=list.files("glParallel/result",pattern=my.pattern),
                    files=list.files("glParallel/result",pattern=my.pattern,full.names=T)
                    )[,c("foo1","bar1"):=tstrsplit(foo,"\\.",keep=c(2,3))][,fold:=paste(foo1,bar1,sep=".")][,c("foo","foo1","bar1"):=NULL]

    dt.cv.glp <-apply(dt.input, 1, function(i){
              my.fold<-i[["fold"]]
              my.feature<-fread(i["files"])[1][["Best proteins"]] %>% strsplit(",") %>% unlist
              data.table(method="glParallel",fold=my.fold,feature=my.feature,score=NA,rank=NA)
              #cbind(`fold`=i[["fold"]],fread(i["files"])[1])
    }) %>% rbindlist

    # 2. Lasso
    # one multinomial or binomial class has fewer than 8  observations; dangerous ground
    dt.cv.lasso<-lapply(names(li.fold), function(my.fold){
      message(paste("Num:",my.num,"Method: LASSO, Fold:",my.fold))
      my.tr.index<-li.fold[[my.fold]] # index of training
      x<-li.mat[["train"]][["28wk"]][my.tr.index,] # the training dataset
      get_lasso_coef(x, my.fold, my.num=my.num)
    }) %>% rbindlist

    # 3. ElasticNet
    # warnings(): one multinomial or binomial class has fewer than 8  observations; dangerous ground
    dt.cv.enet<-lapply(names(li.fold), function(my.fold){
      message(paste("Num:",my.num,"Method: ENET, Fold:",my.fold))
      my.tr.index<-li.fold[[my.fold]] # index of training
      x<-li.mat[["train"]][["28wk"]][my.tr.index,] # the training dataset
      get_enet_coef(x, my.fold, my.num=my.num)
    }) %>% rbindlist

    # 4. mSVM-RFE
    dt.cv.svm<-lapply(names(li.fold), function(my.fold){
      message(paste("Num:",my.num,"Method: mSVM-RFE, Fold:",my.fold))
      my.tr.index<-li.fold[[my.fold]] # index of training
      x<-li.mat[["train"]][["28wk"]][my.tr.index,] # the training dataset
      set.seed(333)
      ranked.features<-colnames(x)[-1][svmRFE(x, k=5, halve.above=100)][1:my.num] # only top x ranked features
      data.table(method="mSVM-RFE",`fold`=my.fold,feature=ranked.features, score=NA,rank=1:length(ranked.features))
    }) %>% rbindlist

    # 5-10. Other methods via RFE
    dt.cv.rfe<-lapply(names(li.methods), function(my.method){
              # runRFE2 for each repetition
              lapply(paste0("Rep",1:5), function(iRep){
                this.fold<-paste(paste0("Fold",1:5),iRep,sep=".") # 5-fold for this repetition
                message(paste("Num:",my.num,"Method:",my.method, "Fold:",this.fold))

                runRFE2(x=li.mat[["train"]][["28wk"]], my.method=my.method, my.num=my.num, my.index=li.fold[this.fold])
              }) %>% rbindlist
    }) %>% rbindlist

    rbind(dt.cv.glp, dt.cv.lasso[method=="LASSO"], dt.cv.enet, dt.cv.svm, dt.cv.rfe)
  }) # end of dl.kcv

  save(dl.kcv, file=my.RData)
}

##
##
my.RData<-file.path("RData/dl.kcv.result.core17.RData")
if(file.exists(my.RData)){
  load(my.RData)
}else{
  # for each number of feature: F2, F3, F4, F5, F6
  dl.kcv.result<-parallel::mclapply(dl.kcv, function(dt.kcv){
    # features by method and fold
    dt.foo<-dt.kcv[order(method,fold,feature)][,.(.N,features=paste(feature,collapse=",")),.(method,fold)]
    my.num<-dt.foo[,unique(N)]

    # features by method, fold and features
    dt.bar<-dt.kcv[order(method,fold,feature)][,.(.N,features=paste(feature,collapse=",")),.(method,fold)][,.(.N,methods=paste(method,collapse=",")),.(fold,features)][order(fold,-N)]

    # get the CV-LPOCV (or CV-AUC) across 25 folds (i.e. 5-Fold-CV * 5 Rep)
    dl.bar<-split(dt.bar, dt.bar$fold) # by each fold
    dt.kcv.result<-parallel::mclapply(dl.bar, function(dt.baz){
      my.fold<-dt.baz[,.N,fold]$fold
      my.index<-li.fold[[my.fold]] # index of training

      # for each list of features in this fold
      lapply(dt.baz$features, function(i){
        message(paste("Num:",my.num,", Fold:",my.fold, ", Features:",i))
        my.feature <- i %>% strsplit(",") %>% unlist
        get_cv_glm(x=li.mat[["train"]][["28wk"]],my.fold,my.index,my.feature)
      }) %>% rbindlist # merge all features
    },mc.cores=1) %>% rbindlist # merge all fold

    merge(dt.foo, dt.kcv.result, by.x=c("fold","features"), by.y=c("fold","predictor"))
  },mc.cores=1) # parallel by the No. of features
  save(dl.kcv.result, file=my.RData)
}

Having selected a set of predictors for each of the 11 ML methods, a logistic regression model was fitted on the training fold based on the selected predictors, and its predictive performance, i.e. the AUC, was calculated using the remaining held-out test fold. As the 5-fold CV was repeated 5 times, the 25 cross-validated AUCs were averaged by taking the mean AUC. This procedure was repeated from a selection of 2- to 6-predictor models, i.e. 5 times, so the cross-validated AUCs were again averaged by taking the mean values of AUCs.

Code to extract the final selected features from each ML method and fit a regression model and test its performance.
my.RData<-file.path("RData/dl.final.models.core17.RData")
if(file.exists(my.RData)){
  load(my.RData)
}else{
  library(e1071)
  source('SVM-RFE/msvmRFE.R')

  li.methods<-list(
    `svmLinear`="svmLinear",
    `svmRadial`="svmRadial",
    `nnet`="nnet",
    `pcaNNet`="pcaNNet",
    `rfFuncs`=rfFuncs,
    `nbFuncs`=nbFuncs
    )

  li.num<-list(`F2`=2,`F3`=3,`F4`=4,`F5`=5,`F6`=6)
  x<-li.mat[["train"]][["28wk"]]

  dl.final.models<-lapply(li.num, function(my.num){
    # 1. glParallel
    message(paste("Num:",my.num,"Method: glParallel"))
    my.pattern=paste0("^core17\\.final\\.best",my.num)
    dt.input<-data.table(
                    foo=list.files("glParallel/result",pattern=my.pattern),
                    files=list.files("glParallel/result",pattern=my.pattern,full.names=T)
                    )[,c("foo1","bar1"):=tstrsplit(foo,"\\.",keep=c(2,3))][,fold:=paste(foo1,bar1,sep=".")][,c("foo","foo1","bar1"):=NULL]

    dt.glp <-apply(dt.input, 1, function(i){
              my.fold<-i[["fold"]]
              my.feature<-fread(i["files"])[1][["Best proteins"]] %>% strsplit(",") %>% unlist
              data.table(method="glParallel",fold=my.fold,feature=my.feature,score=NA,rank=NA)
              #cbind(`fold`=i[["fold"]],fread(i["files"])[1])
    }) %>% rbindlist

    # 2. Lasso
    message(paste("Num:",my.num,"Method: LASSO"))
    dt.lasso<-get_lasso_coef(x=x, "final", my.num=my.num)

    # 3. ElasticNet
    message(paste("Num:",my.num,"Method: ENET"))
    dt.enet<-get_enet_coef(x=x, "final", my.num=my.num)

    # 4. mSVM-RFE
    message(paste("Num:",my.num,"Method: mSVM-RFE"))
    set.seed(333)
    ranked.features<-colnames(x)[-1][svmRFE(x, k=5, halve.above=100)][1:my.num] # only top 4 ranked features
    dt.svm<-data.table(method="mSVM-RFE",`fold`="final",feature=ranked.features, score=NA, rank=1:length(ranked.features))

    # 5-10. Other methods via RFE: "svmLinear" "svmRadial" "nnet"      "pcaNNet"   "rfFuncs"   "nbFuncs"
    dt.rfe<-lapply(names(li.methods), function(my.method){
              message(paste("Num:",my.num,"Method:",my.method))
              runRFE2(x=x, my.method=my.method, my.num=my.num, my.index=li.fold.final, is.final=T)
    }) %>% rbindlist

    # compile all the final models #
    rbind(dt.glp, dt.lasso[method=="LASSO"], dt.enet, dt.svm, dt.rfe)[order(method,feature)]
  }) # end of dl.final.models
  save(dl.final.models, file=my.RData)
} # end of if

my.RData<-file.path("RData/dl.final.result.core17.RData")
if(file.exists(my.RData)){
  load(my.RData)
}else{
  mat.tr<-li.mat[["train"]][["28wk"]] # training model

  dl.final.result<-lapply(dl.final.models, function(dt.model){
    dt.final.model<-dt.model[,.(.N,features=paste(feature,collapse=",")),method][order(features)]
    dt.final<-dt.final.model[,.(.N,methods=paste(method,collapse=',')),features]

    #######################################################################
    # get LPOCV/AUC from the preterm dataset (NB, 28wk-preterm: training) #
    #######################################################################
    dt.final.result<-lapply(dt.final$methods, function(my.methods){
                          ############################################
                          # fit the model using the training dataset #
                          ############################################
                          my.feature<-dt.final[methods==my.methods]$features %>% strsplit(",") %>% unlist
                          df.mat.tr<-mat.tr[,c(my.feature,'y')] %>% as.data.frame  # training set
                          my.model<-glm(y~. , data = df.mat.tr, family = "binomial")

                          ## preterm (NB, 28wk: training dataset where the model was built)
                          dt.foo1<-lapply(c("12wk","20wk","28wk"), function(my.GA){
                            message(paste("preterm",my.methods,my.GA,sep=":"))
                            x<-li.mat[["train"]][[my.GA]]
                            my.fold<-paste0(my.GA,"(preterm)")
                            cbind(`methods`=my.methods,
                                  get_cv_glm2(x=x,my.fold=my.fold,my.model=my.model,my.feature=my.feature)
                            )
                          }) %>% rbindlist

                          ## term (validation)
                          dt.foo2<-lapply(c("12wk","20wk","28wk","36wk"), function(my.GA){
                            message(paste("term",my.methods,my.GA,sep=":"))
                            x<-li.mat[["test"]][[my.GA]]
                            my.fold<-paste0(my.GA,"(term)")
                            cbind(`methods`=my.methods,
                                  get_cv_glm2(x=x,my.fold=my.fold,my.model=my.model,my.feature=my.feature)
                            )
                          }) %>% rbindlist

                          ## Munchel
                          message(paste("Munchel",my.methods,sep=":"))
                          x<-li.mat[["munchel"]]
                          my.fold<-"Munchel"
                          dt.foo3<-cbind(`methods`=my.methods,
                                  get_cv_glm2(x=x,my.fold=my.fold,my.model=my.model,my.feature=my.feature)
                          )

                          rbind(dt.foo1,dt.foo2,dt.foo3)
                      }) %>% rbindlist
    dt.final.result<-dt.final.result[order(fold,-AUC_test)]
    dt.final.result
  })
  save(dl.final.result, file=my.RData)
}

3.5 Internal and external validation

Having identified the winning method (as shown in Figure 6.7 A), it was applied to choose 2 to 10 predictors using the whole 28wkGA samples of the discovery dataset and the selected predictors were used to fit multivariate logistic regression models using the same training dataset (Figure 6.7 B). Finally, we evaluated the predictive performance of those 2- to 10-predictor logistic regression models using the term validation cohort and the external Munchel dataset (as shown in Figure 6.8).

Code to run internal and external validations for 2-10 predictors chosen by the winning method of 5-fold CV.
my.RData<-file.path("RData/dl.enet.models.core17.RData")
if(file.exists(my.RData)){
  load(my.RData)
}else{
  li.num<-2:10 %>% as.list
  names(li.num)=paste0("F",2:10)

  x<-li.mat[["train"]][["28wk"]]

  dl.enet.models<-lapply(li.num, function(my.num){
    # 2. Lasso
    message(paste("Num:",my.num,"Method: LASSO"))
    dt.lasso<-get_lasso_coef(x=x, "final", my.num=my.num)

    # 3. ElasticNet
    message(paste("Num:",my.num,"Method: ENET"))
    dt.enet<-get_enet_coef(x=x, "final", my.num=my.num)

    # compile all the final models #
    rbind(dt.lasso[method=="LASSO"], dt.enet)[order(method,feature)]
  }) # end of dl.final.models
  save(dl.enet.models, file=my.RData)
} # end of if

##
## ENet and LASSO only using Discovery and Validation datasets
##
my.RData<-file.path("RData/dl.enet.result.core17.RData")
if(file.exists(my.RData)){
  load(my.RData)
}else{
  mat.tr<-li.mat[["train"]][["28wk"]] # training model

  dl.enet.result<-lapply(dl.enet.models, function(dt.model){
    dt.final.model<-dt.model[,.(.N,features=paste(feature,collapse=",")),method][order(features)]
    dt.final<-dt.final.model[,.(.N,methods=paste(method,collapse=',')),features]
    #######################################################################
    # get LPOCV/AUC from the preterm dataset (NB, 28wk-preterm: training) #
    #######################################################################
    dt.final.result<-lapply(dt.final$methods, function(my.methods){
                          ############################################
                          # fit the model using the training dataset #
                          ############################################
                          my.feature<-dt.final[methods==my.methods]$features %>% strsplit(",") %>% unlist
                          df.mat.tr<-mat.tr[,c(my.feature,'y')] %>% as.data.frame  # training set
                          my.model<-glm(y~. , data = df.mat.tr, family = "binomial")

                          ## preterm (NB, 28wk: training dataset where the model was built)
                          dt.foo1<-lapply(c("12wk","20wk","28wk"), function(my.GA){
                            message(paste("preterm",my.methods,my.GA,sep=":"))
                            x<-li.mat[["train"]][[my.GA]]
                            my.fold<-paste0(my.GA,"(preterm)")
                            cbind(`methods`=my.methods,
                                  get_cv_glm2(x=x,my.fold=my.fold,my.model=my.model,my.feature=my.feature)
                            )
                          }) %>% rbindlist

                          ## term (validation)
                          dt.foo2<-lapply(c("12wk","20wk","28wk","36wk"), function(my.GA){
                            message(paste("term",my.methods,my.GA,sep=":"))
                            x<-li.mat[["test"]][[my.GA]]
                            my.fold<-paste0(my.GA,"(term)")
                            cbind(`methods`=my.methods,
                                  get_cv_glm2(x=x,my.fold=my.fold,my.model=my.model,my.feature=my.feature)
                            )
                          }) %>% rbindlist

                          ## Munchel
                          message(paste("Munchel",my.methods,sep=":"))
                          x<-li.mat[["munchel"]]
                          my.fold<-"Munchel"
                          dt.foo3<-cbind(`methods`=my.methods,
                                  get_cv_glm2(x=x,my.fold=my.fold,my.model=my.model,my.feature=my.feature)
                          )

                          rbind(dt.foo1,dt.foo2,dt.foo3)
                      }) %>% rbindlist
    dt.final.result<-dt.final.result[order(fold,-AUC_test)]
    dt.final.result
  }) # end of dl.enet.models
  save(dl.enet.result, file=my.RData)
}

#
# The final best models
#
my.RData<-file.path("RData/dt.best.result.core17.RData")
if(file.exists(my.RData)){
  load(my.RData)
}else{
  my.targets<-c("LEP","PAPPA2","LEP,PAPPA2",
                "LEP,LY6G6D,PAPPA2" # best performing LASSO 3-mRNA model
                )

  mat.tr<-li.mat[["train"]][["28wk"]] # training model
  mat.tr<-cbind(mat.tr, "LEP_PAPPA2"=mat.tr[,"LEP"] * mat.tr[,"PAPPA2"])

  #######################################################################
  # get LPOCV/AUC from the preterm dataset (NB, 28wk-preterm: training) #
  #######################################################################
  my.targets<-"LEP_PAPPA2"

  dt.best.result<-lapply(my.targets, function(my.proteins){
                        ############################################
                        # fit the model using the training dataset #
                        ############################################
                        my.feature<-strsplit(my.proteins,",") %>% unlist
                        df.mat.tr<-mat.tr[,c(my.feature,'y')] %>% as.data.frame  # training set
                        my.model<-glm(y~. , data = df.mat.tr, family = "binomial")

                        ## preterm (NB, 28wk: training dataset where the model was built)
                        dt.foo1<-lapply(c("12wk","20wk","28wk"), function(my.GA){
                          message(paste("preterm",my.GA,my.proteins,sep=":"))
                          x<-li.mat[["train"]][[my.GA]]
                          x<-cbind(x, "LEP_PAPPA2"=x[,"LEP"] * x[,"PAPPA2"])
                          my.fold<-paste0(my.GA,"(preterm)")
                          get_cv_glm2(x=x,my.fold=my.fold,my.model=my.model,my.feature=my.feature)
                        }) %>% rbindlist

                        ## term (validation)
                        dt.foo2<-lapply(c("12wk","20wk","28wk","36wk"), function(my.GA){
                          message(paste("term",my.GA,my.proteins,sep=":"))
                          x<-li.mat[["test"]][[my.GA]]
                          x<-cbind(x, "LEP_PAPPA2"=x[,"LEP"] * x[,"PAPPA2"])
                          my.fold<-paste0(my.GA,"(term)")
                          get_cv_glm2(x=x,my.fold=my.fold,my.model=my.model,my.feature=my.feature)
                        }) %>% rbindlist

                        ## Munchel
                        message(paste("Munchel",my.proteins,sep=":"))
                        x<-li.mat[["munchel"]]
                        x<-cbind(x, "LEP_PAPPA2"=x[,"LEP"] * x[,"PAPPA2"])
                        my.fold<-"Munchel"
                        dt.foo3<-get_cv_glm2(x=x,my.fold=my.fold,my.model=my.model,my.feature=my.feature)
                        rbind(dt.foo1,dt.foo2,dt.foo3)
                    }) %>% rbindlist
  save(dt.best.result, file=my.RData)
}
